IoT Sensor Range Details

Pebble
Doc
Airlab
abacus
census

Views:

Weight:

70 g

Dimentions:

100mm x 90mm x 30mm

Functions:

People counting

Typical use:

Determine utilization of meeting rooms vs capacity
Recording of people movement in and out or indoor spaces

Operations:

  • Time of flight directional sensor utilizing a 940 nm invisible laser
  • Two zones (region of interests) measured to detect direction
  • Configurable to ignore door movement
  • Ideally suited for standard door width of 800mm
  • Wider entrances covered by pairing two (or more) Census units
  • Counting accuracy of 95 – 97%
  • Event data is recorded continuously
  • Time and date information of events stored on device for transmission
  • Transmission takes place at predetermined intervals (standard 15 minutes)
  • The transmission interval configurable based on requirement
  • Data Buffering prevents data loss when connectivity is disrupted

Measures:

Occupancy
People Counting
Co2
TVOC
Temperature
Humidity
Ambient Sound
Light Lux
Particulate Matter

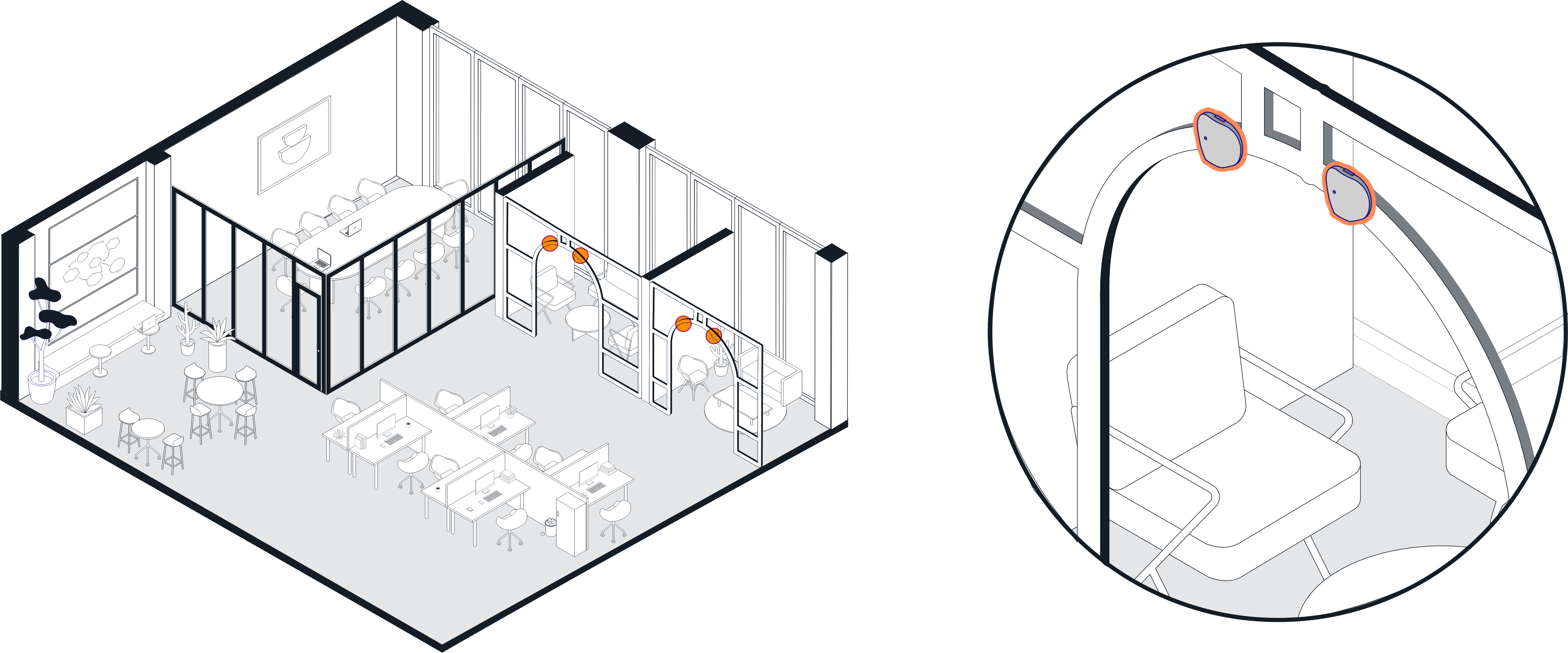

Placement Example:

Communication:

  • On board SIM (swappable) enables 4G transmission to cloud-based analytics platform
  • Protobuf encoded with schemas available
  • MQTT protocol used for data transmission
  • Meta Data includes Device Type & ID, Firmware version, SIM ID
  • Low volumes ensure cost effective communications
  • No other gateway or integration with client network infrastructure required
  • Pairing via Bluetooth connectivity

Power:

5 Volt PSU with Micro USB
